TANK / SEAT for Husqvarna 701 SUPERMOTO from 2016

TANK / SEAT

1

FUEL TANK CPL.

27007113044

$3 072,35 Unit Price incl. VAT

2

SCREW TORX M5X10

78105081010

$5,31 Unit Price incl. VAT

3

CLOSING FLANGE

76507108050

$25,36 Unit Price incl. VAT

4

SCREW TORX M5X10

78105081010

$5,31 Unit Price incl. VAT

5

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$5,31 Unit Price incl. VAT

6

GAS-LEVEL SENSOR ADV. 2006

58207080100

$167,65 Unit Price incl. VAT

7

AH SCREW DIN0912-M 5X16

0912050163

$3,54 Unit Price incl. VAT

8

RIGHT FUEL-TANK SUPPORT PLATE

27007028000

$96,22 Unit Price incl. VAT

9

LEFT FUEL-TANK SUPPORT PLATE

27007027000

$79,36 Unit Price incl. VAT

10

HH COLLAR SCREW M8X16 TX40

0025080166

$8,86 Unit Price incl. VAT

11

CLAMP FOR SEAT LOCK LINKAGE

27007053000

$27,11 Unit Price incl. VAT

12

TANK CAP

27007008000

$617,77 Unit Price incl. VAT

13

BHCS ISO 7380 M6X18

0738060181

$5,31 Unit Price incl. VAT

14

SEAT LOCK

76507050000

$87,43 Unit Price incl. VAT

15

BEARING BUSHING UP

76507060000

$60,74 Unit Price incl. VAT

16

RUBB.BEAR.BOX 12x24x35 L=24,5

76507066000

$28,49 Unit Price incl. VAT

17

HH COLLAR SCREW M8X30 TX40

0025080306S

$6,43 Unit Price incl. VAT

18

BEARING BUSHING DOWN

76507061000

$44,26 Unit Price incl. VAT

19

RUBBER BUSHING 11,7X24,7 L=26

76507065100

$33,55 Unit Price incl. VAT

20

SEAT CPL.

27007040000

$479,19 Unit Price incl. VAT

21

SEAT RUBBER

27007040045

$5,31 Unit Price incl. VAT

22

REAR SPOILER RIGHT

2700804100028A

$166,49 Unit Price incl. VAT

23

REAR SPOILER LEFT

2700804000028A

$161,42 Unit Price incl. VAT

24

SPLASH PROTECTOR

76506010100

$21,84 Unit Price incl. VAT

25

HH collar screw M6x16 TX30

0025060166

$7,09 Unit Price incl. VAT

26

BUCKET

72210079000

$6,43 Unit Price incl. VAT

27

SPOILER-SET SUPERMOTO

27008054000HAA

$221,73 Unit Price incl. VAT

28

special screw M5x12

69008021160

$8,86 Unit Price incl. VAT

29

special screw M5x17

69008021060

$7,09 Unit Price incl. VAT

30

quick release rubber grommet

47106003160

$8,86 Unit Price incl. VAT

31

Decalset seat 701

27007097000

$187,96 Unit Price incl. VAT

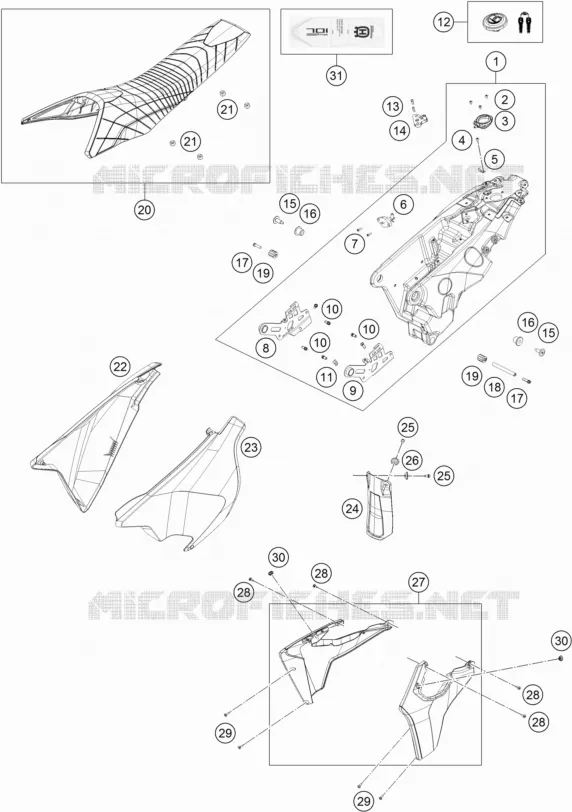

Find the detailed TANK / SEAT HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
