EXHAUST VALVE for Husqvarna TE 125 from 2016

STOP DISK 14,2X22X1,5

49033031015

$5,31 Unit Price incl. VAT

SIDE COVER R/S 2007

50337005100

$7,09 Unit Price incl. VAT

GASKET SIDE COVER R/S 07

50337006100

$7,09 Unit Price incl. VAT

SIDE COVER LEFT 2007

50337007200

$17,93 Unit Price incl. VAT

GASKET SIDE COVER L/S 07

50337008100

$7,09 Unit Price incl. VAT

ANGLE PIECE 90 DEGREE M10X1

51030022000

$10,92 Unit Price incl. VAT

O-RING 8,00X2,00 NBR

0770008020

$3,54 Unit Price incl. VAT

HH COLLAR SCREW M 5X12 WS=6

0014050123

$5,31 Unit Price incl. VAT

NEEDLE ROL. DIN5402 NRB 5X15,8

0402051600

$7,09 Unit Price incl. VAT

TUBE RUBBER 6X9 DVOH 200MM

50332095200

$16,57 Unit Price incl. VAT

CU-SEAL RING DIN7603-26X32X2

0603262322

$5,31 Unit Price incl. VAT

WASHER 5,2 X 12 X 3

50337050064

$7,09 Unit Price incl. VAT

HH collar screw M6x10 TX30

0025060106

$7,09 Unit Price incl. VAT

ECCENTRIC FOR CRANKBOLT 125 09

50337018144

$133,10 Unit Price incl. VAT

CRANK BOLT F.CONTROL FL.125'98

50337019000

$63,03 Unit Price incl. VAT

CONTROL FLAP 125 CPL.

50337020544

$124,13 Unit Price incl. VAT

AXLE FOR CONTRIL FLAP 2007

50337021100

$65,96 Unit Price incl. VAT

CU-SEAL RING DIN7603-6X10X1

0603061001

$5,31 Unit Price incl. VAT

CIRCLIP DIN0472-22X1

0472022100

$5,31 Unit Price incl. VAT

WASHER DIN2093-8,2X16X0,6

0093821606

$5,31 Unit Price incl. VAT

SPACER BUSHING 8X12X2,3

50337050063

$8,86 Unit Price incl. VAT

BALL BEARING 608 RS C3

0625006082

$17,75 Unit Price incl. VAT

O-RINGSTRING 4MM NBR 70 PER/M

00099300011

$12,29 Unit Price incl. VAT

O-RING 16,00X3,00 NBR 70

0770160030

$5,31 Unit Price incl. VAT

SHEET METAL GUIDE 3MM 125'98

50337030000

$24,38 Unit Price incl. VAT

CLOSING COVER '98

50337035000

$7,09 Unit Price incl. VAT

CLOSING COVER GASKET 1MM

50337035050

$7,09 Unit Price incl. VAT

CENTRIFUGAL TIMER CPL. 125'98

50337050044

$437,22 Unit Price incl. VAT

BUSHING HOLDER M 26X1 '98

50337050062

$65,18 Unit Price incl. VAT

CLOSING NUT M 26X1 WS=30

50337050061

$22,63 Unit Price incl. VAT

CONTROL LEVER 125/200'98

50337057000

$118,07 Unit Price incl. VAT

CONTROL SHAFT M 6 WS=10 '98

50337059000

$16,38 Unit Price incl. VAT

CONTROL SHAFT CPL.L/S 125 2001

50337061144

$100,51 Unit Price incl. VAT

CONTROL SHAFT CPL.R/S 125 2001

50337062144

$100,51 Unit Price incl. VAT

HH collar screw M6x12 TX30

0025060126

$7,09 Unit Price incl. VAT

HH collar screw M5x12 TX30

0025050126

$7,09 Unit Price incl. VAT

LEVER F. CONTROL SEGMENT '98

50337066000

$31,99 Unit Price incl. VAT

CONTROL SHAFT SEGMENT 125'98

50337067000

$83,92 Unit Price incl. VAT

DRIVE WHEEL 26-T 125/200'98

50335054026

$13,84 Unit Price incl. VAT

BUSHING SUPPORT WATER PUMP '98

50335056000

$46,24 Unit Price incl. VAT

ROLLER GUIDE 5X6,1X8X4 '98

50337072000

$11,70 Unit Price incl. VAT

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$15,98 Unit Price incl. VAT

BALL BEARING 6000/C3

0625060001

$28,88 Unit Price incl. VAT

O-RING 49,00X2,50 NBR

0770049025

$7,09 Unit Price incl. VAT

WATER PUMP SHAFT

50335054150

$39,11 Unit Price incl. VAT

WATER PUMP WHEEL 07

54835005000

$8,86 Unit Price incl. VAT

LOCK METAL SHEET 2MM '98

50337079000

$7,09 Unit Price incl. VAT

WATER PUMP REP. KIT SX 11-14

54835055115

$158,10 Unit Price incl. VAT

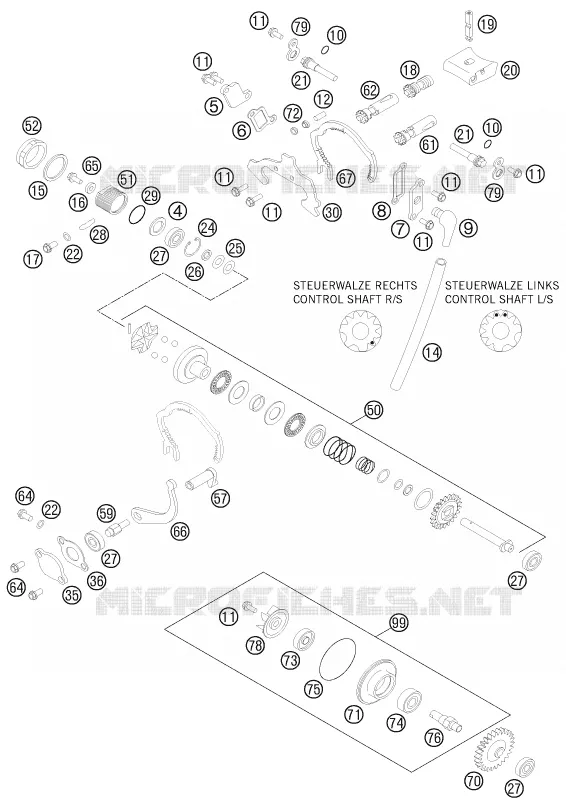

Find the detailed EXHAUST VALVE HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for TE 125

Husqvarna TE 125 2016

TE 125

Model : TE 125

Engine capacity : 125

Year : 2016

Europe
