Parts Catalog
CRANKSHAFT / PISTON
6
Parts Diagram
Parts Catalog
CYLINDER
by
REED VALVE CASE
CRANKSHAFT / PISTON
99
77
77
17
17
75
74
7
7
15
16
18
30
33
34
32
32
76
76
83
83
29
28
82
82
27
7
PISTON CPL. 47MM SIZE 1 2005
47030007100 I
$265,86 Unit Price incl. VAT
7
PISTON CPL. 47MM SIZE 2 2005
47030007100 II
$265,86 Unit Price incl. VAT
15
CONNECT. ROD REPAIR SET 85 SX
47030015200
$883,33 Unit Price incl. VAT
16
SPACER SLEEVE 85 SX 2003
47030016000
$60,10 Unit Price incl. VAT
17
O-RING 18,77X1,78 NBR 70
0770020180
$3,54 Unit Price incl. VAT
18
CRANKSHAFT 85 SX
47030018200
$1 341,12 Unit Price incl. VAT
27
LOCKING RING VSK 12
50230029012
$5,31 Unit Price incl. VAT
28
COLLAR NUT M12X1 R/S
49030021000
$17,87 Unit Price incl. VAT
29
HH SCREW W. COLLAR M10X1,25X20
47032019000
$38,63 Unit Price incl. VAT
30
PISTON RING 85 SX 2003
47030030000
$84,89 Unit Price incl. VAT
32
WIRE LOCK RING 85 SX 2003
47030074000
$5,31 Unit Price incl. VAT
33
PISTON PIN 85 SX 2003
47030033000
$34,20 Unit Price incl. VAT
34
NEEDLE BEARING KBK 14X18X17 03
47030034000
$70,26 Unit Price incl. VAT
74
woodruff key DIN 6888 4x5x13
0888040050
$8,86 Unit Price incl. VAT
75
WOODRUFF KEY DIN6888-3X5X13
0888030050
$5,31 Unit Price incl. VAT
76
SEAL SHAFT RING 20X35X6 BTSL
47030076100
$44,88 Unit Price incl. VAT
77
OIL SEAL
0760304261
$34,35 Unit Price incl. VAT
82
cylindrical roller bearing NJ2
49030023000
$155,37 Unit Price incl. VAT
83
BALL BEARING 22X52X15
47030083000
$59,91 Unit Price incl. VAT
99
CRANKSHAFT REP. KIT 85/105 SX
00050002307
$215,91 Unit Price incl. VAT

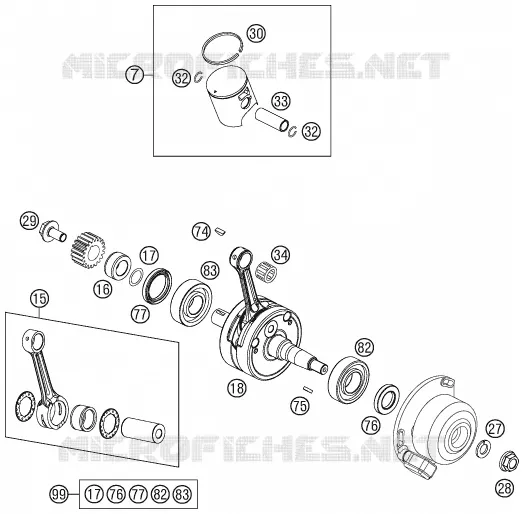

Find the detailed CRANKSHAFT / PISTON HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
