FRONT FORK (PARTS)
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
15
16
17
18
19
22
23
24
30
31
33
34
35
36
37
37
37
38
38
38
38
38
38
38
39
42
43
44
45
47
49
49
49
49
49
49
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
51
52
55
58
59
59
59
60
60
60
61
61
61
62
62
62
63
64
69
70
71
72
73
74
75
76
79
80
81
82
83
98
99
1
SREW CAP+BUSH M51X1,5
48600020S
48600020S1
$210,08 Unit Price incl. VAT
2
O-ring 45x2 NBR70 siliconized
46810340
$2,13 Unit Price incl. VAT
3
Adjuster rebound
48600018
$8,57 Unit Price incl. VAT
4
SCREW CAP M51X1,5 CPL.
48600020S1
$210,08 Unit Price incl. VAT
5
Steel ball d3
40540603
$2,13 Unit Price incl. VAT
6
Spring (1,7) l7,9
48600028
$6,43 Unit Price incl. VAT
7
O-ring 6x1,5 NBR70
48600044
$2,13 Unit Price incl. VAT
8
Cross flat head screw M4x6
48600058
$3,90 Unit Price incl. VAT
9
O-ring 3,7x1,6 NBR70
48600009
$2,13 Unit Price incl. VAT
10
O-ring 12x1,5 NBR70
48600043
$4,27 Unit Price incl. VAT
11
Tube tap d4x25
48600019
$6,43 Unit Price incl. VAT
12
OUTER TUBE L=577MM D=54/60MM
48600381
48600381E
$849,88 Unit Price incl. VAT
13
Round-wire snap ring 48x2
48600016
$6,43 Unit Price incl. VAT
15
DU-BUSH 48X52X12
48600205
$68,96 Unit Price incl. VAT
16
Supportwasher 50x57,6x1,5
48600013
$6,43 Unit Price incl. VAT
17
Shaft seal SKF 48x57,8x9,5 bla
48600399
$29,80 Unit Price incl. VAT
18
Snap ring SB58x1,5 acc drawing
48600070
$4,27 Unit Price incl. VAT
19
DUST CAP D=48 58,4X11,8
48600400
$38,17 Unit Price incl. VAT
22
DU-BUS 47X49X20
48600204
$68,53 Unit Price incl. VAT
23
INNER TUBE D=48 L=595 2005
48600377
$927,49 Unit Price incl. VAT
24
HYDR.STOP L=200MM D=31,9 CPL.
48600380S
48600380S1
$120,91 Unit Price incl. VAT
30
ADJUSTMENT TUBE L=512MM
48600014
$29,45 Unit Price incl. VAT
31
PISTON ROD D=14 L=546 M11X1
48600408
$187,97 Unit Price incl. VAT
33
Needle 6x42,6 rebound
48600189
$72,40 Unit Price incl. VAT
34
O-ring 3x1,5 NBR70
48600046
$3,54 Unit Price incl. VAT
35
Spring (7,2) 4-23 needle
48600033
$10,92 Unit Price incl. VAT
36
Washer 32x42x2,5 plastic
48600113
$23,21 Unit Price incl. VAT
37
Preload bush 42x26,5x2,5
48600036
$4,27 Unit Price incl. VAT
37
Preload bush 26,5x42x5
48600037
$8,57 Unit Price incl. VAT
37
Preload bush 26,5x42x1,5
48600053
$8,57 Unit Price incl. VAT
38
SPRING 3,6N/MM SET
91410011S
$304,49 Unit Price incl. VAT
38
SPRING 3,8N/MM SET D=4,9MM
91410012S
$304,49 Unit Price incl. VAT
38
SPRING 4,0N/MM SET D=5,0MM
91410013S
$473,25 Unit Price incl. VAT
38
SPRING 4,2N/MM SET D=5,0MM
91410014S
$276,81 Unit Price incl. VAT
38
SPRING 4,4N/MM SET D=5,1MM
91410015S
$304,49 Unit Price incl. VAT
38
SPRING 4,6N/MM SET
91410016S
$304,49 Unit Price incl. VAT
38
SPRING 4,8N/MM SET
91410017S
$313,86 Unit Price incl. VAT
39
Spring retainer 33,5x43x3
48600021
$34,91 Unit Price incl. VAT
42
SCREW SLEEVE M29,3X1 L=90 CPL.
48600383S
$180,10 Unit Price incl. VAT
43
O-ring 8x1,25 NBR70 siliconize
48600239
$3,54 Unit Price incl. VAT
44
Spring (15) 12-34,5 rebound
48600403
$67,79 Unit Price incl. VAT
45
Tap 6x45 rebound
48600203
$17,88 Unit Price incl. VAT
47
Spring (11,7) 1,5-8 valve
35480377
$4,27 Unit Price incl. VAT
49
CHECK VALVE 8X24X0,1
48600062
$4,27 Unit Price incl. VAT
49
CHECK VALVE 8X18X0,1
48600068
$7,75 Unit Price incl. VAT
49
Shim 8x20x0,10
48600215
$4,27 Unit Price incl. VAT
49
Shim 8x22x0,10
48600216
$4,27 Unit Price incl. VAT
49
CHECK VALVE 8X11X0,4
48600352
$10,25 Unit Price incl. VAT
49
Shim 8x11x0,10
48600357
$4,27 Unit Price incl. VAT
50
Shim 6x12x0,10
40540400
$4,27 Unit Price incl. VAT
50
Shim 6x14x0,10
40540401
$4,27 Unit Price incl. VAT
50
Shim 6x16x0,10
40540402
$4,27 Unit Price incl. VAT
50
Shim 6x18x0,10
40540403
$4,27 Unit Price incl. VAT
50
SHIM 6X16X0,25
40540414
$4,27 Unit Price incl. VAT
50
SHIM 6X18X0,25
40540415
$4,27 Unit Price incl. VAT
50
Shim 6x10x0,30
40540447
$4,27 Unit Price incl. VAT
50
Shim 6x9,5x0,30
40540450
$4,27 Unit Price incl. VAT
50
Shim 6X11X0,10
40541383
$4,27 Unit Price incl. VAT
50
Shim 6x24x0,10
48600063
$4,27 Unit Price incl. VAT
50
Shim 6x22x0,10
48600064
$4,27 Unit Price incl. VAT
50
Shim 6x20x0,10
48600065
$4,27 Unit Price incl. VAT
50
Shim 6x24x0,10 delta
48600116
$4,27 Unit Price incl. VAT
50
Shim 6x10x0,25
48600217
$4,27 Unit Price incl. VAT
50
Shim 6x13x0,10
48600325
$4,27 Unit Price incl. VAT
50
SHIM 6X15X0,1
48600327
$4,27 Unit Price incl. VAT
50
Shim 6x17x0,10
48600329
$4,27 Unit Price incl. VAT
50
Shim 6x19x0,10
48600331
$4,27 Unit Price incl. VAT
51
Pistonring 26x28x5
48600060
$10,92 Unit Price incl. VAT
52
Piston 6,05x27,65x12 rebound
48600042
$25,19 Unit Price incl. VAT
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
$8,57 Unit Price incl. VAT
58
TUBE 29,3X1X390 D=8,5MM
48600081
$331,82 Unit Price incl. VAT
59
O-ring 46x2 NBR70 siliconized
48600048
$6,43 Unit Price incl. VAT
60
AXLE CLAMP L/S CPL. USD48 04
48600237S
48600860S
$799,48 Unit Price incl. VAT
61
AXLE CLAMP R/S CPL. USD48 04
48600238S
$619,12 Unit Price incl. VAT
62
HH COLLAR SCREW M 8X25 WS=10
0015080253
$3,14 Unit Price incl. VAT
63
Nut valve M6x0,5 h6,5 WAF17
48600163
$6,43 Unit Price incl. VAT
64
Spring (8,5) l6,5 valve
40541278
Not Available
69
TAP COMPRESSION CPL. 03
48600152S1
$177,17 Unit Price incl. VAT
70
Shim 8x24x0,40
48600061
$4,27 Unit Price incl. VAT
71
Piston 6x27,8x9 compression
48600047
$20,48 Unit Price incl. VAT
72
O-ring 21x2 NBR70
46811499
$2,13 Unit Price incl. VAT
73
O-ring 24x2 NBR70
35480320
$2,13 Unit Price incl. VAT
74
TAP COMPRESSION
48600152
$86,34 Unit Price incl. VAT
75
Needle 10x11,6 compression
48600190
$28,49 Unit Price incl. VAT
76
O-ring 8x2 NBR70
48600049
$2,13 Unit Price incl. VAT
79
Round-wire snap ring 12x1 DIN7
48600051
$6,43 Unit Price incl. VAT
80
Adjustment screw slot compress
48600034
$15,73 Unit Price incl. VAT
81
Copper disc 29,5x33,5x1
48600004
$8,57 Unit Price incl. VAT
82
Rubber cap 35x10 NBR80
48600141
$8,57 Unit Price incl. VAT
83
FORK OIL SAE5 5L 2005
48600401S1
$474,08 Unit Price incl. VAT
98
SILICONE GREASE F. DUST STRI
T511
$124,46 Unit Price incl. VAT
99
REPAIR-KIT GASKET 4860 MXMA 05
R14009
$261,86 Unit Price incl. VAT

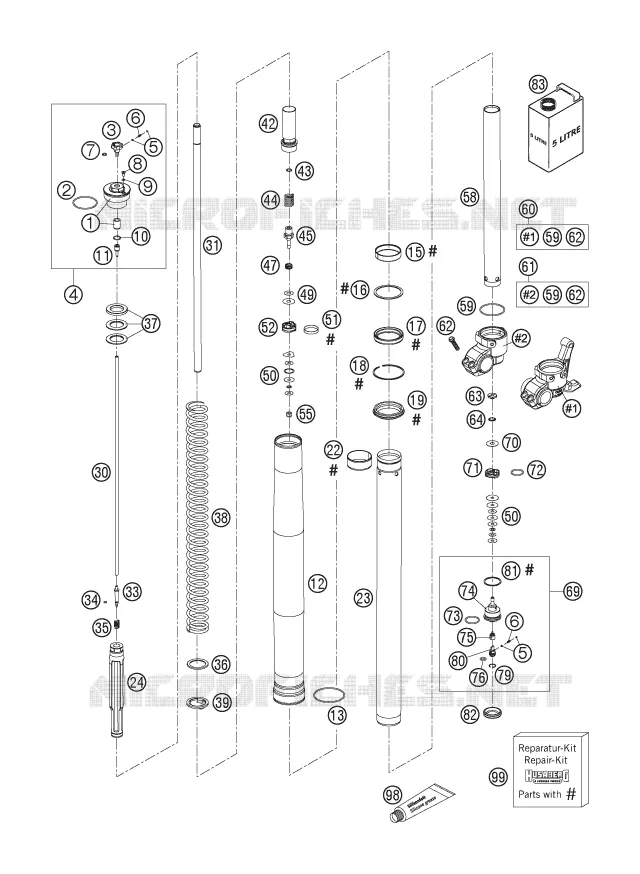

Find the detailed FRONT FORK (PARTS) HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.
