1
Engine displacement
450
2
Year
2005
3
Model
FS 450 E
4
Trim
FS 450 E
5
Parts Catalog
FRONT FORK / TRIPLE CLAMP
6

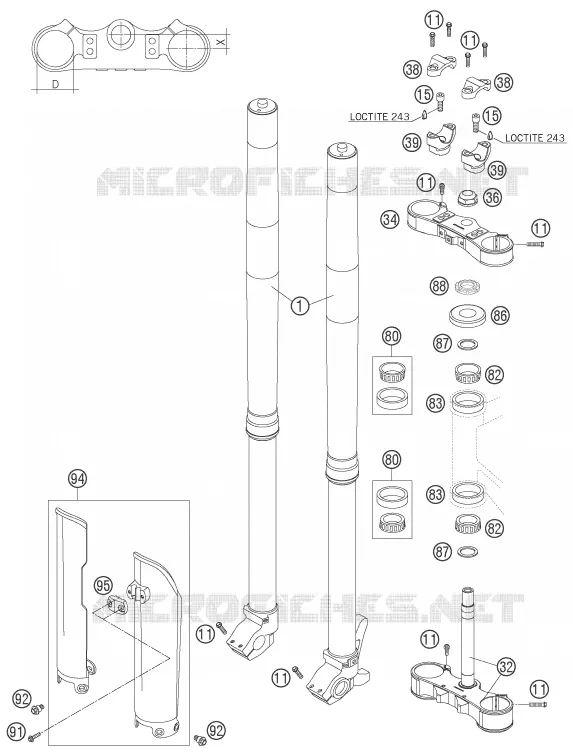

Parts Diagram
Parts Catalog
FRONT FORK / TRIPLE CLAMP
by
FRONT FORK (PARTS)
FRONT FORK / TRIPLE CLAMP
1
11
11
11
11
11
11
11
11
15
15
32
34
36
38
38
39
39
82
82
83
83
86
87
87
88
91
92
92
94
95
80
80
1
FRONT FORK MXMA 4860 FS 05
14457A03
Not Available
11
HH COLLAR SCREW M 8X30 WS=10
0015080303
0025080306
$6,43 Unit Price incl. VAT
15
AH SCREW DIN6912-M10X25,10.9
0912100250
0032100256S
$8,86 Unit Price incl. VAT
32
BOT.TRIPLE CLAMP CPL.x=16/D=60
80001032116
$587,06 Unit Price incl. VAT
34
TOP TRIPLE CLAMP X=17/D=57
80001034117
80001035017
$371,65 Unit Price incl. VAT
36
COLLAR SCREW M22X1/5H/WS27 ALU
80001036000
$27,85 Unit Price incl. VAT
38
HANDLEBAR CLAMP 28MM 05
59401038000
77201038000
$52,29 Unit Price incl. VAT
39
HANDLEBAR SUPPORT 28MM
59401039000
59401039037
$71,22 Unit Price incl. VAT
80
TAPERED ROLLER BEARING CPL.
80001080000
$94,82 Unit Price incl. VAT
82
Steering head bearing, inner r
80001082000
Not Available
83
Steering head bearing, outer r
80001083000
Not Available
86
STEERING HEAD COVER
54201086000
$17,75 Unit Price incl. VAT
87
SPACER STEARING HEAD 04
80001087000
$9,04 Unit Price incl. VAT
88
ADJUSTING NUT STEERING HEAD 05
80001088100
$24,51 Unit Price incl. VAT
91
EJOT PT SCREW K60X20 ALU WS=6
0017060204
0017060206
$7,09 Unit Price incl. VAT
92
SPECIAL SCREW M6X12,5 WS=8
59001092050
$5,31 Unit Price incl. VAT
94
FORK PROTECT L/S+R/S BLACK 02
5900109400030
5900109410030
$83,92 Unit Price incl. VAT
95
CLAMP F.SPEED CABLE D=8MM 2001
58201085000
$3,90 Unit Price incl. VAT

Find the detailed FRONT FORK / TRIPLE CLAMP HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
