1
Engine displacement
450
2
Year
2005
3
Model
FS 450 E
4
Trim
FS 450 E
5
Parts Catalog
KICK STARTER
6
Parts Diagram
Parts Catalog
GEARBOX COUNTERSHAFT
by
GEAR SHIFTING MECHANISM
KICK STARTER
1
1
7
8
16
23
28
40
50
51
53
54
60
60
67
70
1
KICKSTARTER CPL. 03
80033070000
80033070100
$230,64 Unit Price incl. VAT
1
KICKSTARTER CPL. 2005
80033070100
$230,64 Unit Price incl. VAT
7
NEEDLE BEARING K 18X22X10 02
0405182210
$17,56 Unit Price incl. VAT
8
NEEDLE BEARING K 17X21X10
0405172110
$26,53 Unit Price incl. VAT
16
SHAFT SEAL RING 18X24X4
0760182442
$12,09 Unit Price incl. VAT
23
LOCKING PAWL KICK 03
80033023000
$10,28 Unit Price incl. VAT
28
RATCHET SPRING 03
80033028000
$1,85 Unit Price incl. VAT
40
HH COLLAR SCREW M 6X25 WS=8
0015060253
$1,83 Unit Price incl. VAT
50
KICKSTARTER SHAFT 03
80033050000
$218,25 Unit Price incl. VAT
51
KICKSTARTER GEAR 03
80033051000
$138,22 Unit Price incl. VAT
53
INTERMEDIATE GEAR 03
80033053000
$117,46 Unit Price incl. VAT
54
KICKSTARTER SPRING 03
80033054000
$12,83 Unit Price incl. VAT
60
STOP DISK 17,2X25X1
54633090000
$10,92 Unit Price incl. VAT
67
CIRCLIP DIN0471-17X1
0471170010
$5,31 Unit Price incl. VAT
70
STEPPED WASHER KICKSTARTER
80033070150
$14,71 Unit Price incl. VAT

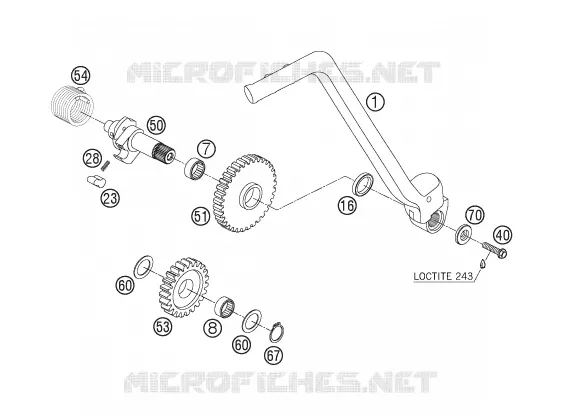

Find the detailed KICK STARTER HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
