CRANKSHAFT / PISTON for Husqvarna SVARTPILEN 250 - B.D. from 2020

CRANKSHAFT / PISTON

1

Crankshaft cmpl.

93730018000

Not Available

2

GEAR BALANCER DRIVE

90230055000

$64,01 Unit Price incl. VAT

3

CONICAL WASHER 28,35X38X1,75

90230069000

$5,31 Unit Price incl. VAT

4

NUT FOR DRIVE WHEEL AGW

90130018008

$13,91 Unit Price incl. VAT

6

ROTOR SCREW CPL.

90239005050

$11,88 Unit Price incl. VAT

7

PRIMARY GEAR 30T

90232023030

$89,75 Unit Price incl. VAT

8

SPROCKET CRANKSHAFT

90236014000

$24,97 Unit Price incl. VAT

9

WASHER PLAIN

90236015000

$5,31 Unit Price incl. VAT

10

SPECIAL WASHER

90236015001

$3,54 Unit Price incl. VAT

11

NUT M16X1,5

90230029000

$11,47 Unit Price incl. VAT

12

WOODRUFF KEY 4X5X13

J888040050

$5,31 Unit Price incl. VAT

13

Connecting rod

93730015000

Not Available

14

PARALLEL PIN

90630015002

$5,31 Unit Price incl. VAT

15

CON ROD SCREW

90230015013

$11,47 Unit Price incl. VAT

16

BUSH BIG END

91230014010

Not Available

16

BUSH BIG END (GREEN)

91230014011

Not Available

16

BUSH BIG END ''BLACK''

91230014012

Not Available

17

PISTON CPL.

91230007000

Not Available

18

PISTON RINGS CPL.

91230030010

$35,12 Unit Price incl. VAT

19

CIRCLIP

91230033001

Not Available

20

PISTON PIN

91230033000

Not Available

21

PLAIN WASHER 28,2X39X1,5

90230068000

$3,54 Unit Price incl. VAT

22

Parallel pin

90134013000

$3,54 Unit Price incl. VAT

23

Woodruff key 4X4X12

J888040150

$5,31 Unit Price incl. VAT

99

PISTON KIT 250 RC

91230007010

Not Available

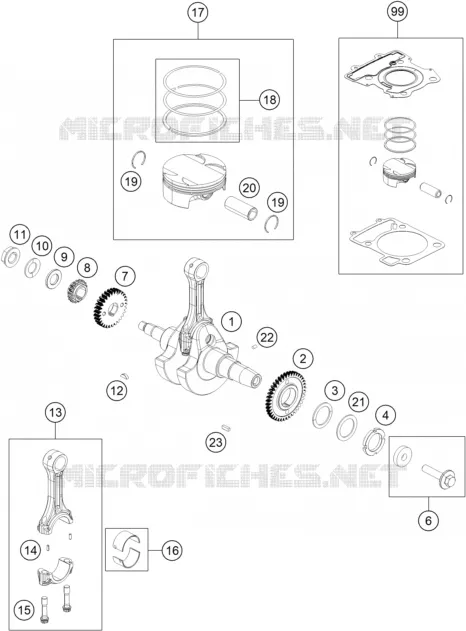

Find the detailed CRANKSHAFT / PISTON HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SVARTPILEN 250 - B.D.

FRONT FORK / TRIPLE CLAMP

HANDLEBAR / CONTROLS

FRAME

SIDE / MAIN STAND

SHOCK ABSORBER

SWINGARM

EXHAUST

AIR FILTER

TANK / SEAT

FUEL PUMP

PLASTICS

SIDE PANELS

FRONT WHEEL

REAR WHEEL

WIRING HARNESS

BATTERY

FRONT BRAKE MASTER CYLINDER

REAR BRAKE MASTER CYLINDER

FRONT BRAKE CALIPER

REAR BRAKE CALIPER

HEADLIGHT / TAIL LIGHT

IGNITION SWITCH

EVAPORATIVE CANISTER

BRAKE ANTIBLOCK SYSTEM ABS

CRANKCASE

CLUTCH COVER

BALANCER SHAFT

CYLINDER

CRANKSHAFT / PISTON

CLUTCH

GEARBOX MAIN SHAFT

GEARBOX COUNTERSHAFT

GEAR SHIFTING MECHANISM

WATERPUMP

COOLING SYSTEM

VALVES

TIMING

CYLINDER HEAD

OIL PUMP

IGNITION SYSTEM

ELECTRIC STARTER MOTOR

THROTTLE BODY

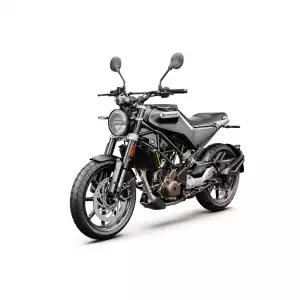

Husqvarna SVARTPILEN 250 - B.D. 2020
