1
Engine displacement
85
2
Year
2015
3
Model
TC 85
4
Trim
TC 85 19/16
5
Parts Catalog

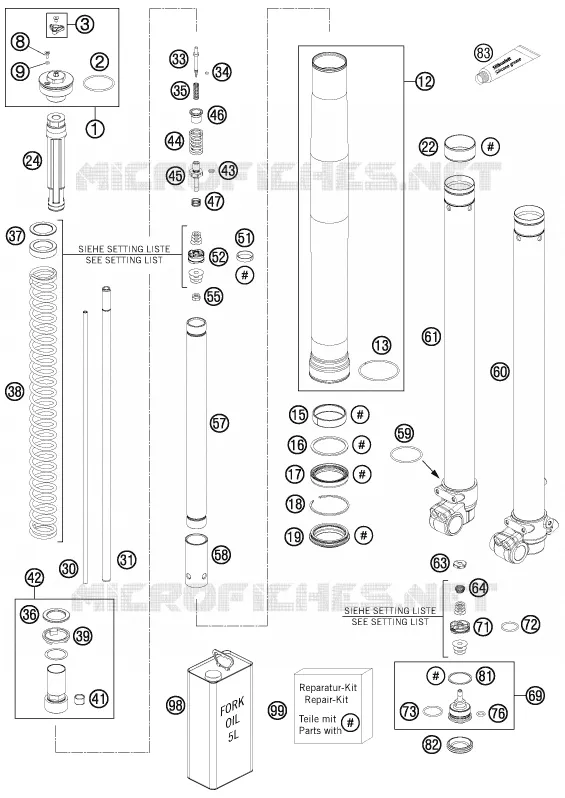

FRONT FORK (PARTS)
6
Parts Diagram
Parts Catalog
FRONT FORK / TRIPLE CLAMP
by
HANDLEBAR / CONTROLS
FRONT FORK (PARTS)
73
55
18
59
16
13
39
37
37
37
37
37
17
19
1
24
61
60
12
22
15
2
72
81
9
71
76
82
64
33
34
43
47
41
35
51
8
44
45
46
52
69
31
30
58
3
42
57
63
98
38
38
38
99
99
99
99
99
99
99
99
99
83
1
SCREW CAP M46X1,5 CPL.
43570395S1
$751,67 Unit Price incl. VAT
2
O-ring 40x2 NBR70 black
46811042
$4,27 Unit Price incl. VAT
3
ADJUSTING KNOB + SCREW
48600812S
$6,76 Unit Price incl. VAT
8
Cross countersunk head screw M
48600481
$4,27 Unit Price incl. VAT
9
O-ring 3x1,5 NBR70
48600046
$3,54 Unit Price incl. VAT
12
Fork outer tube 44,14x510 dt49
43570614E
$508,05 Unit Price incl. VAT
13
Round-wire snap ring 53x2
43570099
$55,23 Unit Price incl. VAT
15
Guide bushing 42x44x20
43570618
$24,38 Unit Price incl. VAT
16
Supportwasher 45x52,5x1,5
43570092
$41,95 Unit Price incl. VAT
17
Seal ring 43x52,9x9,5
43570201
$32,99 Unit Price incl. VAT
18
Snap ring SB53x1,5 acc drawing
43570008
$6,43 Unit Price incl. VAT
19
Dirtscarper NOK 43mm
43570202
$35,49 Unit Price incl. VAT
22
Guide bushing 42x44x20
43570617
$23,79 Unit Price incl. VAT
24
Stop 12,4x28,6x135 cpl.
43570396S
$95,63 Unit Price incl. VAT
30
Adjustment tube 6x442
48600695
$40,98 Unit Price incl. VAT
31
Piston rod 12x476
48600694
$353,25 Unit Price incl. VAT
33
Needle 4,5x43,6
48600277
$11,50 Unit Price incl. VAT
34
O-ring 2x1,5 NBR70
48600298
$2,13 Unit Price incl. VAT
35
Spring (5,4) 4-23 rebound
48600444
$6,43 Unit Price incl. VAT
36
Preload bush 26,5x38x2,5
43570133
$6,43 Unit Price incl. VAT
37
Preload bush 26,5x38x2,5
43570133
$6,43 Unit Price incl. VAT
37
Preload bush 26x35x4
43570134
$6,43 Unit Price incl. VAT
37
Preload bush 26x38x10
43570135
$8,57 Unit Price incl. VAT
37
Preload bush 26,5x38x1,5
43570136
$6,43 Unit Price incl. VAT
38
SPRING 3,2 N/MM SET D=4,2MM
95010031S
$273,26 Unit Price incl. VAT
38
SPRING 3,4 N/MM SET D=4,4MM
95010032S
$273,26 Unit Price incl. VAT
38
SPRING 3,6 N/MM SET
95010033S
$273,26 Unit Price incl. VAT
39
Spring retainer 33,5x38,2x3
43570131
$37,66 Unit Price incl. VAT
41
Guide bushing 12x14x10
48600430
$13,45 Unit Price incl. VAT
42
SCREW SLEEVE M27X0,8 CPL.
48600830S2
$75,53 Unit Price incl. VAT
43
O-ring 6x1,2 NBR70
48600299
$2,13 Unit Price incl. VAT
44
Spring (13,9) 17-32 rebound
48600511
$1,96 Unit Price incl. VAT
45
TAP REBOUND 07
48600513
$33,36 Unit Price incl. VAT
46
Spring retainer 12,3x19x1,25 r
48600525
$4,27 Unit Price incl. VAT
47
Spring (11,4) 0,4-8 valve
48600382
$4,27 Unit Price incl. VAT
51
Piston ring 21x23x5
48600455
48601625
$9,39 Unit Price incl. VAT
52
Piston 6,07x22,7x13
48600575
$30,82 Unit Price incl. VAT
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
$8,57 Unit Price incl. VAT
57
Tube 23x330
48600870
$152,62 Unit Price incl. VAT
58
Adapter 23x28x70
48600764
$46,63 Unit Price incl. VAT
59
O-ring 41x2 NBR70 siliconized
43570023
$28,29 Unit Price incl. VAT
60
AXLE CLAMP L/S + TUBE CPL.
43570559S1
$820,98 Unit Price incl. VAT
61
AXLE CLAMP R/S + TUBE CPL.
43570558S1
$1 295,10 Unit Price incl. VAT
63
Nut valve M6x0,5 h6,5 WAF17
48600885
$10,92 Unit Price incl. VAT
64
Spring (8,5) l6,5 valve
48600202
$4,27 Unit Price incl. VAT
69
Tap compression cpl.
48600586S
$184,19 Unit Price incl. VAT
71
Piston 6x27,8x9 compression
48600047
$20,48 Unit Price incl. VAT
72
O-ring 21x2 NBR70
46811499
$2,13 Unit Price incl. VAT
73
O-ring 24x2 NBR70
35480320
$2,13 Unit Price incl. VAT
76
O-ring 8x2 NBR70
48600049
$2,13 Unit Price incl. VAT
81
Copper disc 29,5x33,5x1
48600004
$8,57 Unit Price incl. VAT
82
Rubber cap 35x10 NBR80
48600141
$8,57 Unit Price incl. VAT
83
SILICONE GREASE F. DUST STRI
T511
$124,46 Unit Price incl. VAT
98
FORK OIL SAE4 5L
48601166S1
$312,30 Unit Price incl. VAT
99
REPAIR-KIT
R511
$234,48 Unit Price incl. VAT

Find the detailed FRONT FORK (PARTS) HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for TC 85 19/16

FRONT FORK / TRIPLE CLAMP

FRONT FORK / TRIPLE CLAMP

for TC 85 19/16 from 2015

FRONT FORK (PARTS)

FRONT FORK (PARTS)

for TC 85 19/16 from 2015

HANDLEBAR / CONTROLS

HANDLEBAR / CONTROLS

for TC 85 19/16 from 2015

FRAME

FRAME

for TC 85 19/16 from 2015

SHOCK ABSORBER

SHOCK ABSORBER

for TC 85 19/16 from 2015

SHOCK ABSORBER (PARTS)

SHOCK ABSORBER (PARTS)

for TC 85 19/16 from 2015

SWINGARM

SWINGARM

for TC 85 19/16 from 2015

EXHAUST

EXHAUST

for TC 85 19/16 from 2015

AIR FILTER

AIR FILTER

for TC 85 19/16 from 2015

TANK / SEAT

TANK / SEAT

for TC 85 19/16 from 2015

PLASTICS

PLASTICS

for TC 85 19/16 from 2015

STICKERS

STICKERS

for TC 85 19/16 from 2015

FRONT WHEEL

FRONT WHEEL

for TC 85 19/16 from 2015

REAR WHEEL

REAR WHEEL

for TC 85 19/16 from 2015

FRONT BRAKE MASTER CYLINDER

FRONT BRAKE MASTER CYLINDER

for TC 85 19/16 from 2015

REAR BRAKE MASTER CYLINDER

REAR BRAKE MASTER CYLINDER

for TC 85 19/16 from 2015

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for TC 85 19/16 from 2015

REAR BRAKE CALIPER

REAR BRAKE CALIPER

for TC 85 19/16 from 2015

TOOL KIT / MANUALS / OPTIONS

TOOL KIT / MANUALS / OPTIONS

for TC 85 19/16 from 2015

WP SHIMS FOR SETTING

WP SHIMS FOR SETTING

for TC 85 19/16 from 2015

CRANKCASE

CRANKCASE

for TC 85 19/16 from 2015

CYLINDER

CYLINDER

for TC 85 19/16 from 2015

CRANKSHAFT / PISTON

CRANKSHAFT / PISTON

for TC 85 19/16 from 2015

REED VALVE CASE

REED VALVE CASE

for TC 85 19/16 from 2015

CARBURETOR

CARBURETOR

for TC 85 19/16 from 2015

CLUTCH

CLUTCH

for TC 85 19/16 from 2015

GEARBOX MAIN SHAFT

GEARBOX MAIN SHAFT

for TC 85 19/16 from 2015

GEARBOX COUNTERSHAFT

GEARBOX COUNTERSHAFT

for TC 85 19/16 from 2015

KICK STARTER

KICK STARTER

for TC 85 19/16 from 2015

GEAR SHIFTING MECHANISM

GEAR SHIFTING MECHANISM

for TC 85 19/16 from 2015

COOLING SYSTEM

COOLING SYSTEM

for TC 85 19/16 from 2015

EXHAUST VALVE

EXHAUST VALVE

for TC 85 19/16 from 2015

IGNITION SYSTEM

IGNITION SYSTEM

for TC 85 19/16 from 2015

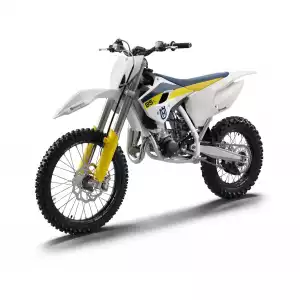

Husqvarna TC 85 19/16 2015
