FRONT FORK (PARTS) for Husqvarna FE 450 S from 2004

SREW CAP+BUSH M51X1,5

48600020S

48600020S1

$210,08 Unit Price incl. VAT

O-ring 45x2 NBR70 siliconized

46810340

$2,13 Unit Price incl. VAT

Adjuster rebound

48600018

$8,57 Unit Price incl. VAT

SCREW CAP M51X1,5 CPL.

48600020S1

$210,08 Unit Price incl. VAT

Steel ball d3

40540603

$2,13 Unit Price incl. VAT

Spring (1,7) l7,9

48600028

$6,43 Unit Price incl. VAT

O-ring 6x1,5 NBR70

48600044

$2,13 Unit Price incl. VAT

Cross flat head screw M4x6

48600058

$3,90 Unit Price incl. VAT

O-ring 3,7x1,6 NBR70

48600009

$2,13 Unit Price incl. VAT

O-ring 12x1,5 NBR70

48600043

$4,27 Unit Price incl. VAT

Tube tap d4x25

48600019

$6,43 Unit Price incl. VAT

OUTER TUBE L=577MM D=54/60MM

48600244

$987,35 Unit Price incl. VAT

Round-wire snap ring 48x2

48600016

$6,43 Unit Price incl. VAT

SPACER 50,95X0,85X161,5

48600245

$56,06 Unit Price incl. VAT

DU-BUSH 48X52X12

48600205

$68,96 Unit Price incl. VAT

Supportwasher 50x57,6x1,5

48600013

$6,43 Unit Price incl. VAT

OIL SEAL RING 48X57,8X9,5 03

48600347

$40,59 Unit Price incl. VAT

Snap ring SB58x1,5 acc drawing

48600070

$4,27 Unit Price incl. VAT

DUST STRIPPER D=48

48600186

Not Available

Guide bushing 48x51x12

48600236

$48,01 Unit Price incl. VAT

DU-BUS 47X49X20

48600204

$68,53 Unit Price incl. VAT

INNER TUBE D=48 L=595 2003

48600240

$590,90 Unit Price incl. VAT

HYDR.STOP L=200MM D=31,9 CPL

48600241S

48600380S1

$120,91 Unit Price incl. VAT

ADJUSTMENT TUBE L=512MM

48600014

$29,45 Unit Price incl. VAT

PISTON ROD D=14 L=546 M11X1

48600250

Not Available

Needle 6x42,6 rebound

48600189

$72,40 Unit Price incl. VAT

O-ring 3x1,5 NBR70

48600046

$3,54 Unit Price incl. VAT

Spring (7,2) 4-23 needle

48600033

$10,92 Unit Price incl. VAT

Washer 32x42x2,5 plastic

48600113

$23,21 Unit Price incl. VAT

Preload bush 42x26,5x2,5

48600036

$4,27 Unit Price incl. VAT

Preload bush 26,5x42x5

48600037

$8,57 Unit Price incl. VAT

Preload bush 26,5x42x1,5

48600053

$8,57 Unit Price incl. VAT

SPRING 3,6N/MM SET

91410011S

$304,49 Unit Price incl. VAT

SPRING 3,8N/MM SET D=4,9MM

91410012S

$304,49 Unit Price incl. VAT

SPRING 4,0N/MM SET D=5,0MM

91410013S

$473,25 Unit Price incl. VAT

SPRING 4,2N/MM SET D=5,0MM

91410014S

$276,81 Unit Price incl. VAT

SPRING 4,4N/MM SET D=5,1MM

91410015S

$304,49 Unit Price incl. VAT

SPRING 4,6N/MM SET

91410016S

$304,49 Unit Price incl. VAT

SPRING 4,8N/MM SET

91410017S

$313,86 Unit Price incl. VAT

Spring retainer 33,5x43x3

48600021

$34,91 Unit Price incl. VAT

Screw sleeve M29,3x1 cpl.

48600196S

$175,49 Unit Price incl. VAT

O-ring 8x1,25 NBR70 siliconize

48600239

$3,54 Unit Price incl. VAT

REBOUND SPRING D=15MM L=34,5MM

48600192

$31,77 Unit Price incl. VAT

Tap 6x45 rebound

48600203

$17,88 Unit Price incl. VAT

Spring (11,7) 1,5-8 valve

35480377

$4,27 Unit Price incl. VAT

SHIM 8X18X0,10

43570120

$4,27 Unit Price incl. VAT

CHECK VALVE 8X24X0,1

48600062

$4,27 Unit Price incl. VAT

Shim 8x20x0,10

48600215

$4,27 Unit Price incl. VAT

Shim 8x22x0,10

48600216

$4,27 Unit Price incl. VAT

Shim 6x14x0,10

40540401

$4,27 Unit Price incl. VAT

Shim 6x16x0,10

40540402

$4,27 Unit Price incl. VAT

Shim 6x18x0,10

40540403

$4,27 Unit Price incl. VAT

SHIM 6X16X0,25

40540414

$4,27 Unit Price incl. VAT

SHIM 6X18X0,25

40540415

$4,27 Unit Price incl. VAT

Shim 6x9,5x0,30

40540450

$4,27 Unit Price incl. VAT

Shim 6x24x0,10

48600063

$4,27 Unit Price incl. VAT

Shim 6x22x0,10

48600064

$4,27 Unit Price incl. VAT

Shim 6x20x0,10

48600065

$4,27 Unit Price incl. VAT

Shim 6x24x0,10 delta

48600116

$4,27 Unit Price incl. VAT

Pistonring 26x28x5

48600060

$10,92 Unit Price incl. VAT

Piston 6,05x27,65x12 rebound

48600042

$25,19 Unit Price incl. VAT

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$8,57 Unit Price incl. VAT

TUBE 29,3X1X385 ALU

48600140

$176,37 Unit Price incl. VAT

O-ring 46x2 NBR70 siliconized

48600048

$6,43 Unit Price incl. VAT

AXLE CLAMP L/S CPL. USD48 04

48600237S

48600860S

$799,48 Unit Price incl. VAT

AXLE CLAMP R/S CPL. USD48 04

48600238S

$619,12 Unit Price incl. VAT

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3,83 Unit Price incl. VAT

Nut valve M6x0,5 h6,5 WAF17

48600163

$6,43 Unit Price incl. VAT

Spring (8,5) l6,5 valve

48600202

$4,27 Unit Price incl. VAT

TAP COMPRESSION CPL. 03

48600152S1

$177,17 Unit Price incl. VAT

Shim 8x24x0,40

48600061

$4,27 Unit Price incl. VAT

Piston 6x27,8x9 compression

48600047

$20,48 Unit Price incl. VAT

O-ring 21x2 NBR70

46811499

$2,13 Unit Price incl. VAT

O-ring 24x2 NBR70

35480320

$2,13 Unit Price incl. VAT

TAP COMPRESSION

48600152

$86,34 Unit Price incl. VAT

Needle 10x11,6 compression

48600190

$28,49 Unit Price incl. VAT

O-ring 8x2 NBR70

48600049

$2,13 Unit Price incl. VAT

Round-wire snap ring 12x1 DIN7

48600051

$6,43 Unit Price incl. VAT

Adjustment screw slot compress

48600034

$15,73 Unit Price incl. VAT

Copper disc 29,5x33,5x1

48600004

$8,57 Unit Price incl. VAT

Rubber cap 35x10 NBR80

48600141

$8,57 Unit Price incl. VAT

FORK OIL SAE 5

48600211S1

Not Available

REPAIR-KIT GASKET 4860 MXMA 03

R14007

$282,82 Unit Price incl. VAT

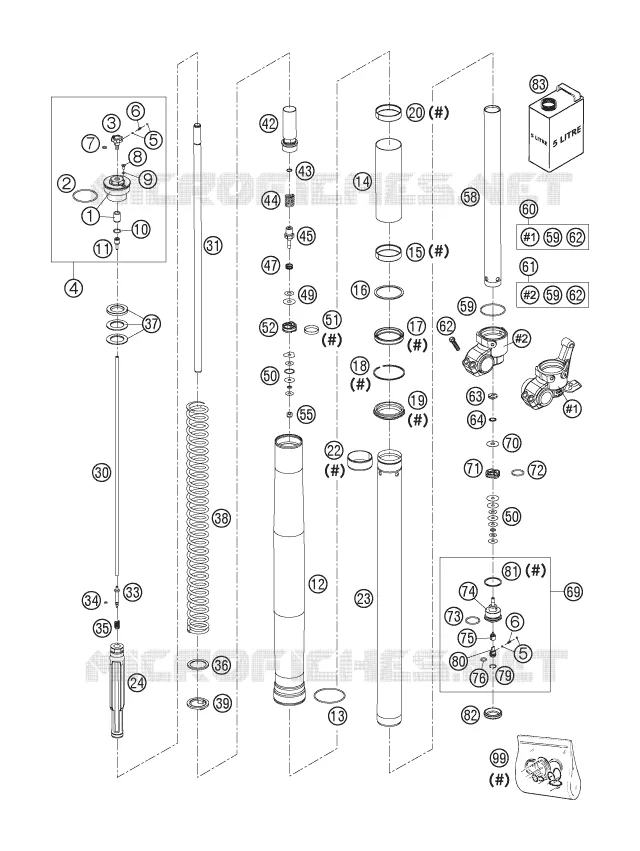

Find the detailed FRONT FORK (PARTS) HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
