Engine displacement
650
2
Year
2005
3
Model
FS 650 C
4
Trim
FS 650 C
5
Parts Catalog
WIRING HARNESS
6
Parts Diagram
Parts Catalog
WIRING HARNESS
by
ACCESSORIES
WIRING HARNESS
20
22
23
15
16
42
44
43
45
41
46
71
52
76
76
76
76
7
35
25
25
29
48
51
60
70
6
62
86
83
83
84
9
78
58
99
49
75
80
80
81
81
74
34
53
54
55
56
57
39
40
39
61
61
1
2
2
2
3
3
97
1
IGNITION WIRING HARNESS 04
80011075300
$145,50 Unit Price incl. VAT
2
MAIN WIRING FE-EU 05
80011075500
$278,33 Unit Price incl. VAT
3
STARTER WIRING HARNESS 05
80011079100
$88,54 Unit Price incl. VAT
6
WIRING HARNESS REAR 125-380'98
50311076000
$57,18 Unit Price incl. VAT
7
FLASHER UNIT 97
44611207200
$104,02 Unit Price incl. VAT
9
FUSE 10 A 2000
58011109110
$5,31 Unit Price incl. VAT
15
HH COLLAR SCREW M 6X10 WS=8
0015060103
$2,53 Unit Price incl. VAT
16
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3,77 Unit Price incl. VAT
20
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3,14 Unit Price incl. VAT
22
HH COLLAR SCREW M 6X15 WS=8
0014060153
$1,65 Unit Price incl. VAT
23
HH COLLAR SCREW M 6X20 WS=8
0014060203
$5,31 Unit Price incl. VAT
25
BULB 12V 1,2W (W2X4,6D)
49111425000
$7,47 Unit Price incl. VAT
29
FLASHER SWITCH CEV '98
50311029000
$108,52 Unit Price incl. VAT
34
VOLTAGE REGULATOR 04
80011034000
$207,86 Unit Price incl. VAT
35
BULB 12V 5W (W2,1X9,5D)
49011435000
$7,58 Unit Price incl. VAT
39
STARTER CABLE L=190MM 04
80011059000
$22,58 Unit Price incl. VAT
39
STARTER CABLE L=165MM 04
80011059100
Not Available
40
BATTERY CABLE L=155MM 04
80011059050
$24,56 Unit Price incl. VAT
41
FLAT HEAD SCREW DIN7985-M 4X16
0985040163
$5,31 Unit Price incl. VAT
42
CYL.HEAD SCREW DIN0084-M 4X22A
0084040223
$3,54 Unit Price incl. VAT
43
SHCS DIN 912 M5x8
0912050083
$3,54 Unit Price incl. VAT
44
AH OVAL SCREW ISO 7380 M 6X8
0902060083
$3,54 Unit Price incl. VAT
45
HEXAGON NUT DIN0934-M 4
0934040003
$3,54 Unit Price incl. VAT
46
SELF LOCK. NUT DIN0985-M 6
0985060003
$5,31 Unit Price incl. VAT
48
BRAKE LIGHT SWITCH FRONT 2002
50311050100
$134,86 Unit Price incl. VAT
49
BRAKE LIGHT SWITCH CPL. 05
58611050000
$143,90 Unit Price incl. VAT
51
BRAKE LIGHT SWITCH REAR '98
50311051100
$77,08 Unit Price incl. VAT
52
RUBBER SLEEVE D=12MM
41001052000
$8,86 Unit Price incl. VAT
53
BATTERY 12V/7AH 04
80011053000
$651,55 Unit Price incl. VAT
54
BATTERY CARRIER 04
80011054000
$176,73 Unit Price incl. VAT
55
DAMPING RUBBER 04
80011054050
$1,85 Unit Price incl. VAT
56
DISTANCE SPACER 6MM 04
80011056000
$5,67 Unit Price incl. VAT
57
BRACKET FOR STARTER RELAY 04
80011058050
$20,48 Unit Price incl. VAT
58
STARTER RELAY 12V '99
58211058000
$151,65 Unit Price incl. VAT
60
DC HORN 12V K80/L LEB
50311060000
$67,13 Unit Price incl. VAT
61
BRACKET FOR HORN 04
80011061000
$9,77 Unit Price incl. VAT
61
BRACKET FOR HORN 05
80011061100
Not Available
62
clip nut M6
54603048100
$8,86 Unit Price incl. VAT
70
H.LIGHT SWITCH CEV 2/4TAKT '98
50311070000
$135,05 Unit Price incl. VAT
71
ADAPTER FOR FLASHER SWITCH '98
13011070060
$10,92 Unit Price incl. VAT
74
STARTER CONTROL 04
59411074000
$65,01 Unit Price incl. VAT
75
START-STOP SWITCH 2000
59011074100
$130,57 Unit Price incl. VAT
76
CABLE TIE 200/3,6MM BLACK
44011076200
$3,54 Unit Price incl. VAT
76
CABLE TIE 300/4,8MM BLACK
44011076305
$5,31 Unit Price incl. VAT
78
BRACKET FOR FLASHER RELAY
58211031100
$11,89 Unit Price incl. VAT
80
FLASH.WIRINGHARNESS FRONT 2001
59011080000
$73,57 Unit Price incl. VAT
81
FLASH.WIRINGHARNESS REAR 2001
59011081000
$42,15 Unit Price incl. VAT
83
SUPPORT BRACKET EXC 2005
54811083100
$35,12 Unit Price incl. VAT
84
PVC-CLAMP 7,9 MM HEYCO 3355
57013070100
$5,31 Unit Price incl. VAT
86
RUBBER BAND
54611186000
$10,92 Unit Price incl. VAT
97
GROUND CABLE 04
80011097000
$24,38 Unit Price incl. VAT
99
PROTECTION CAP F. STARTER ENG.
58440099000
$10,92 Unit Price incl. VAT

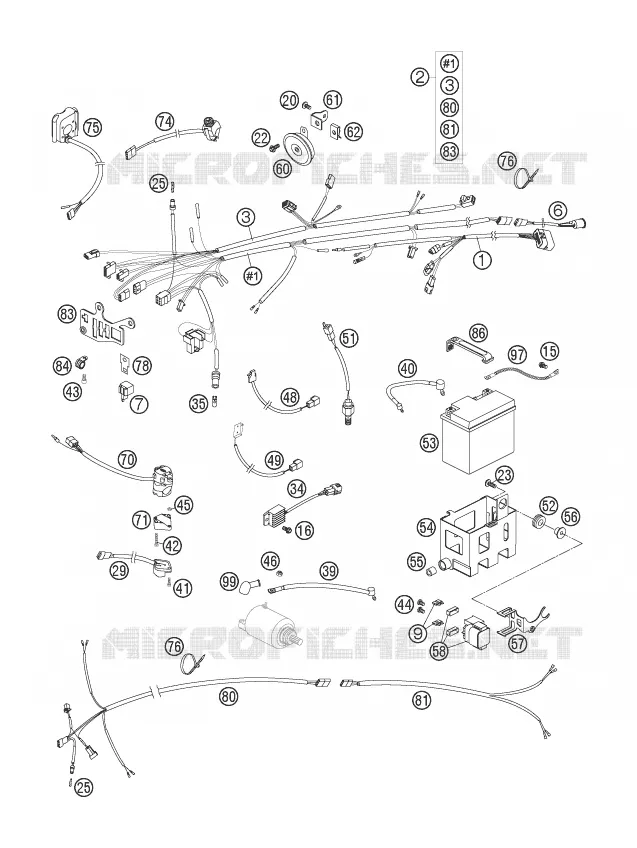

Find the detailed WIRING HARNESS HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.
