1
Engine displacement
650
2
Year
2006
3
Model
FS 650 E
4
Trim
FS 650 E
5
Parts Catalog
REAR WHEEL
6
Parts Diagram
Parts Catalog
FRONT WHEEL
by
REAR WHEEL
REAR WHEEL
10
1
11
14
14
15
16
16
18
18
35
49
49
49
49
50
50
51
51
51
52
52
52
56
56
56
60
62
65
66
70
71
72
73
79
80
80
81
81
84
85
86
89
90
1
REAR WHEEL CPL. 2,15X18'' EXC.
8001000104491
58310001344
$768,40 Unit Price incl. VAT
10
REAR WHEEL HUB CPL. SX,EXC03
5481001004491
$533,48 Unit Price incl. VAT
11
BUSH. SPACER TUBE 121,5MM 01
59010011000
$33,89 Unit Price incl. VAT
14
GR.BALL BEAR.6005 DDU2CG23S6NM
0625060058
$38,25 Unit Price incl. VAT
15
CIRCLIP DIN0472-47X1,75
0472047175
$7,09 Unit Price incl. VAT
16
BUSHING FOR HUB
54610016000
$41,51 Unit Price incl. VAT
18
SHAFT SEAL RING 32X47X7 BSL
0760324771
$27,90 Unit Price incl. VAT
35
PLUG FOR RIM
55003135000
$5,31 Unit Price incl. VAT
49
REAR SPROCKET 38-T
58310051038
$135,64 Unit Price incl. VAT
49
REAR SPROCKET 42-T
58310051042
$135,64 Unit Price incl. VAT
49
REAR SPROCKET 40-T
58310151040
$131,73 Unit Price incl. VAT
49
REAR SPROCKET 45-T
58310151045
$117,36 Unit Price incl. VAT
50
REAR SPROCKET 48-T
58310151048
$117,36 Unit Price incl. VAT
50
REAR SPROCKET 49-T
58310151049
$106,46 Unit Price incl. VAT
51
REAR SPROCKET 50-T
58310151050
$117,36 Unit Price incl. VAT
51
REAR SPROCKET 51-T
58310151051
$106,46 Unit Price incl. VAT
51
REAR SPROCKET 52-T
58310151052
$117,36 Unit Price incl. VAT
52
SPROCKET SCREW-AH M8X26 WS=6
54510052100
$6,49 Unit Price incl. VAT
56
SELF LOCKING NUT M8 10.9
54310086200
$7,09 Unit Price incl. VAT
60
BRAKE DISC REAR PERFOR. 04
80010060000
80010060100
$209,16 Unit Price incl. VAT
62
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
$5,31 Unit Price incl. VAT
65
CHAIN 5/8X1/4'' + MASTER LINK
80010265118
$369,52 Unit Price incl. VAT
66
MASTER LINK 5/8X1/4'' X-RING
50010066100
$14,69 Unit Price incl. VAT
70
REAR RIM 2,15X18'' EXCEL AL7
54810070000
$355,12 Unit Price incl. VAT
71
SPOKE M5X195-10G 18'' DDE
50310072195
$6,13 Unit Price incl. VAT
72
SPOKE NIPPLE M5-TA (8X21MM)
58309072000
$4,22 Unit Price incl. VAT
73
RIM BAND 18'' AND 19''
50310073200
$27,70 Unit Price incl. VAT
79
HEXAGON NUT M20X1,5 '98
50310099000
$23,60 Unit Price incl. VAT
80
HH COLLAR NUT M10X1,25 WS=13
58414030000
$5,31 Unit Price incl. VAT
81
screw M10x1.25x50 WS10
50304040100
$10,92 Unit Price incl. VAT
84
CHAIN TENSIONER R/S 04
80010084000
$28,89 Unit Price incl. VAT
85
WHEEL SPINDEL REAR CPL. 04
80010085044
$96,78 Unit Price incl. VAT
86
COVERING CAP SFL16
50210086000
$7,09 Unit Price incl. VAT
89
RIM LOCK VM3 (2.15'')
54010100100
$55,14 Unit Price incl. VAT
90
NUT FOR WHEEL HOLDER '96
50310090050
$6,87 Unit Price incl. VAT

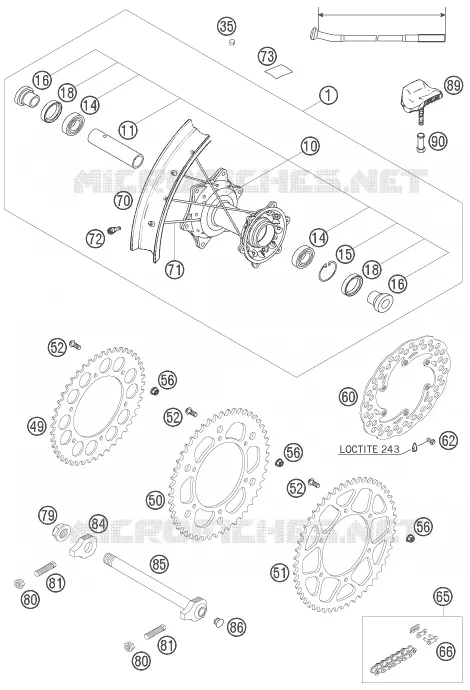

Find the detailed REAR WHEEL HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
