1
Engine displacement
650
2
Year
2005
3
Model
FS 650 E
4
Trim
FS 650 E
5
Parts Catalog
OIL PUMP
6
Parts Diagram
Parts Catalog
TIMING
by
IGNITION SYSTEM
OIL PUMP
1
2
3
5
7
8
10
16
17
25
25
27
30
41
45
50
1
OIL PUMP GEAR 03
80038001000
$7,44 Unit Price incl. VAT
2
OIL PUMP CPL. 03
80038002044
$91,83 Unit Price incl. VAT
3
OIL PUMP COVER 03
80038003000
$27,34 Unit Price incl. VAT
5
OIL FILTER LONG
58038005000
Not Available
7
STOP DISK 8,1 X 15 X 0,5
58038007755
$5,31 Unit Price incl. VAT
8
TAB WASHER DIN6799-RS 6,0
0799060000
$5,31 Unit Price incl. VAT
10
NEEDLEROL.DIN5402 NRA 2,5X19,8
0402251980
$3,54 Unit Price incl. VAT
16
OIL SCREEN 15X83MM
59038016000
$23,19 Unit Price incl. VAT
17
PLUG M20X1,5 WS=13
59038017000
$18,98 Unit Price incl. VAT
25
O-RING 12,5X1,5 NBR
0770125015
$5,31 Unit Price incl. VAT
27
O-RING 17,17X1,78 GLO
0770020170
$5,31 Unit Price incl. VAT
30
O-RING 38,00X2,00 NBR 70 SH
0770380020
$7,09 Unit Price incl. VAT
41
OIL FILTER COVER 03
80038041000
$77,00 Unit Price incl. VAT
45
AH SCREW DIN912-M5X50 10.9
0912050503
$3,54 Unit Price incl. VAT
50
HH COLLAR SCREW M 4X13 WS=6
0016040133
$5,31 Unit Price incl. VAT

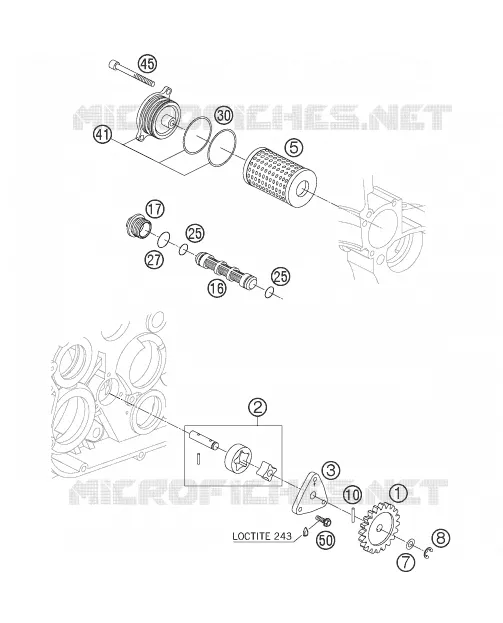

Find the detailed OIL PUMP HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
