SWINGARM for Husqvarna FS 550 E from 2007

SWINGARM

1

SWINGARM CPL. HUSABERG 05

80004030144

Not Available

5

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3,77 Unit Price incl. VAT

6

HH COLLAR SCREW M 5X12 WS=8

0015050123

$1,47 Unit Price incl. VAT

8

HH COLLAR SCREW M 6X16 WS=8

0015060163

$2,00 Unit Price incl. VAT

10

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2,65 Unit Price incl. VAT

15

SPECIAL SCREW M6X12,5 WS=8

59001092050

$5,31 Unit Price incl. VAT

31

NEEDLE BEARING HK 2216

58033097000

$29,26 Unit Price incl. VAT

32

BUSH. SLEEVE SWINGARM BEAR. 05

80004032100

$20,48 Unit Price incl. VAT

33

STOP DISK 22,2X31,7X1

54603036000

$3,72 Unit Price incl. VAT

34

radial shaft seal 25x32x7

0760253270

$13,84 Unit Price incl. VAT

37

SWINGARM BOLT L=237MM

80004037100

$120,30 Unit Price incl. VAT

38

SELF LOCK.NUT M16X1,5 WS=19 03

54804038000

$5,31 Unit Price incl. VAT

40

O-RING 25,30X2,40 NBR70

0770253240

$3,54 Unit Price incl. VAT

41

CLOSING COVER SWINGARM 04

80004041000

$15,42 Unit Price incl. VAT

42

CLOSING COVER ROUND 03

58404041100

$3,54 Unit Price incl. VAT

60

CHAIN GUARD 05

80004060100

$31,40 Unit Price incl. VAT

66

CHAIN SLIDING GUARD 04

80004066000

$33,53 Unit Price incl. VAT

67

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$17,35 Unit Price incl. VAT

70

RETAINING PLATE CHAIN GUIDE'94

50207070044

$42,58 Unit Price incl. VAT

71

CHAIN GUIDE REAR '94

54607066100

$59,72 Unit Price incl. VAT

76

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$5,31 Unit Price incl. VAT

80

BUSHING SUPPORT MONOSH. 2005

80004080100

Not Available

81

BUCKET F. SHAFT SEAL RING 04

80004034000

$11,88 Unit Price incl. VAT

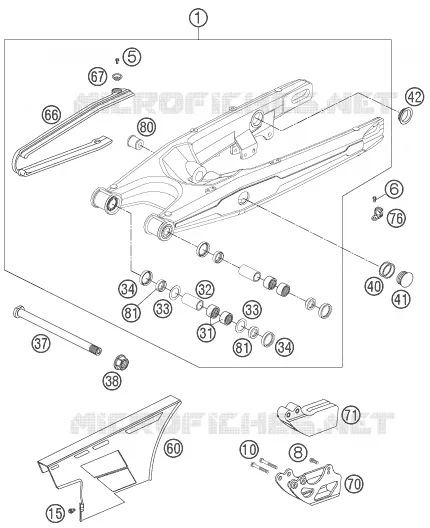

Find the detailed SWINGARM HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
