1
Engine displacement
550
2
Year
2005
3
Model
FE 550 S
4
Trim
FE 550 S
5
Parts Catalog
CLUTCH COVER
6
Parts Diagram
Parts Catalog
CRANKCASE
by
BALANCER SHAFT
CLUTCH COVER
1
1
1
7
7
18
18
19
19
20
21
23
25
26
27
52
53
54
55
56
60
60
63
63
65
71
72
72
73
73
80
81
82
82
82
82
82
82
82
82
82
83
86
1
CLUTCH COVER CPL. 04
80030001044
$458,17 Unit Price incl. VAT
7
SLIDING SLEEVE PLASTIC-COAT 03
80034007053
$9,29 Unit Price incl. VAT
18
CIRCLIP OIL LEVEL GLASS 03
61030019050
$3,54 Unit Price incl. VAT
19
OIL LEVEL GLASS G 1777 Y
59030019000
$29,53 Unit Price incl. VAT
20
PLUG M 24X3
58030020000
$12,60 Unit Price incl. VAT
21
O-RING 19,00X3,00 NBR
0770191015
$5,31 Unit Price incl. VAT
23
dowel sleeve 6x8x11.5
59030023000
$6,86 Unit Price incl. VAT
25
GASKET CLUTCH COVER 03
80030025000
$54,24 Unit Price incl. VAT
26
OUTER CLUTCH COVER 03
80030026000
$114,90 Unit Price incl. VAT
27
GASKET OUTER CLUTCH COVER
80030027000
80030027100
$26,33 Unit Price incl. VAT
52
WATER PUMP COVER 03
80035052000
$69,30 Unit Price incl. VAT
53
GASKET WATER PUMP COVER 03
80035053000
$7,09 Unit Price incl. VAT
54
CIRCLIP DIN0471-10X1
0471100010
$5,31 Unit Price incl. VAT
55
WATER PUMP GEAR 03
80035055000
$21,43 Unit Price incl. VAT
56
NEEDLEROL.DIN5402 NRA 2,5X19,8
0402251980
$3,54 Unit Price incl. VAT
60
SHAFT SEAL RING 10X18X4 BSL
0760101843
$13,55 Unit Price incl. VAT
63
BALL BEARING SPEC.B.B.SKF 6201
0625062013
$63,23 Unit Price incl. VAT
65
O-RING 17,30X2,40 NBR 70 SH
0770173024
$3,54 Unit Price incl. VAT
71
KICKSTARTER BUFFER 04
80033071000
Not Available
72
NEEDLE BEARING HK 0810 03
80040060000
$5,61 Unit Price incl. VAT
73
BUSHING 12X15X9,7
80040025050
$23,03 Unit Price incl. VAT
80
HH COLLAR SCREW M 6X16 WS=8
0015060163
$2,00 Unit Price incl. VAT
81
HH COLLAR SCREW M 6X20 WS=8
0015060203
$2,02 Unit Price incl. VAT
82
HH COLLAR SCREW M 6X25 WS=8
0015060253
$1,83 Unit Price incl. VAT
83
HH COLLAR SCREW M 6X30 SW=8
0015060303
$1,65 Unit Price incl. VAT
86
HH COLLAR SCREW M 6X45 WS=8
0015060453
$2,65 Unit Price incl. VAT

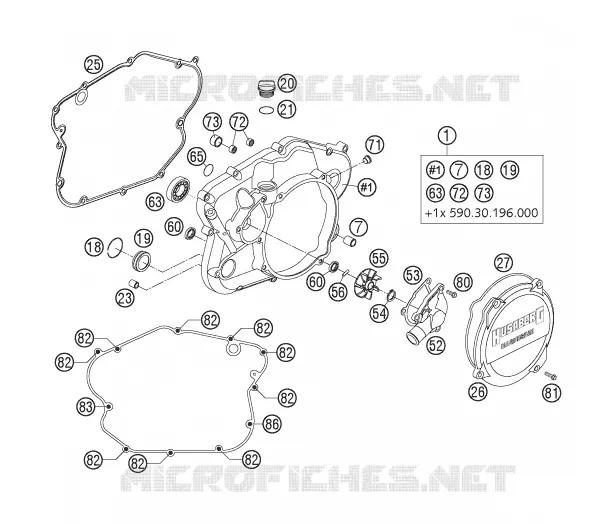

Find the detailed CLUTCH COVER HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
