1
Engine displacement
450
2
Year
2006
3
Model
FS 450 E
4
Trim
FS 450 E
5
Parts Catalog
FRONT FORK (PARTS)
6
Parts Diagram
Parts Catalog
FRONT FORK (PARTS)
by
HANDLEBAR / CONTROLS
FRONT FORK (PARTS)
2
3
4
5
5
6
6
7
10
11
12
13
15
16
17
18
19
22
23
24
30
31
33
88
35
36
37
37
37
38
38
39
42
43
44
45
47
49
49
49
49
49
49
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
51
52
55
58
59
59
59
60
60
60
61
61
61
62
62
62
63
64
69
70
71
72
73
74
75
76
79
80
81
82
83
87
88
89
90
91
92
93
94
98
99
2
O-ring 45x2 NBR70 siliconized
46810340
$2,13 Unit Price incl. VAT
3
Adjuster rebound
48600018
$8,57 Unit Price incl. VAT
4
PRE-LOAD ADJUSTER CPL.(1 PC.)
48600075S
$1 064,62 Unit Price incl. VAT
5
Steel ball d3
40540603
$2,13 Unit Price incl. VAT
6
Spring (1,7) l7,9
48600028
$6,43 Unit Price incl. VAT
7
O-ring 6x1,5 NBR70
48600044
$2,13 Unit Price incl. VAT
10
O-ring 12x1,5 NBR70
48600043
$4,27 Unit Price incl. VAT
11
Tube tap d4x25
48600019
$6,43 Unit Price incl. VAT
12
OUTER TUBE L=577 D=54/60MM
48600381E
$849,88 Unit Price incl. VAT
13
Round-wire snap ring 48x2
48600016
$6,43 Unit Price incl. VAT
15
DU-BUSH D48XD52X12DDL02
48600429
$60,91 Unit Price incl. VAT
16
Supportwasher 50x57,6x1,5
48600013
$6,43 Unit Price incl. VAT
17
Shaft seal SKF 48x57,8x9,5 bla
48600399
$29,80 Unit Price incl. VAT
18
Snap ring SB58x1,5 acc drawing
48600070
$4,27 Unit Price incl. VAT
19
DUST CAP D=48 58,4X11,8
48600400
$38,17 Unit Price incl. VAT
22
DU-BUSH D47XD49X20DDL02
48600428
$60,91 Unit Price incl. VAT
23
INNER TUBE D=48 L=595
48600437
$502,68 Unit Price incl. VAT
24
Stop 14,4x32,1x200 cpl.
48600380S1
$120,91 Unit Price incl. VAT
30
ADJUSTMENT TUBE L=492MM
48600094
$32,11 Unit Price incl. VAT
31
PISTON ROD 14X11X1 L=526
48600412
$221,51 Unit Price incl. VAT
33
Needle 6x42,6 rebound
48600189
$72,40 Unit Price incl. VAT
34
O-ring 3x1,5 NBR70
48600046
$3,54 Unit Price incl. VAT
35
Spring (7,2) 4-23 needle
48600033
$10,92 Unit Price incl. VAT
36
Washer 32x42x2,5 plastic
48600113
$23,21 Unit Price incl. VAT
37
Preload bush 42x26,5x2,5
48600036
$4,27 Unit Price incl. VAT
37
Preload bush 26,5x42x5
48600037
$8,57 Unit Price incl. VAT
37
Preload bush 26,5x42x1,5
48600053
$8,57 Unit Price incl. VAT
38
SPRING 4,6N/MM SET D=5,1MM
91410019S
$251,54 Unit Price incl. VAT
38
SPRING 4,8N/MM SET D=5,25 MM
91410020S
$276,81 Unit Price incl. VAT
39
Spring retainer 33,5x43x3
48600021
$34,91 Unit Price incl. VAT
42
SCREW SLEEVE M29,3X1 L=65 CPL.
48600200S1
$147,80 Unit Price incl. VAT
43
O-ring 8x1,25 NBR70 siliconize
48600239
$3,54 Unit Price incl. VAT
44
Spring (15) 12-34,5 rebound
48600403
$67,79 Unit Price incl. VAT
45
Tap 6x45 rebound
48600203
$17,88 Unit Price incl. VAT
47
Spring (11,7) 1,5-8 valve
35480377
$4,27 Unit Price incl. VAT
49
CHECK VALVE 8X24X0,1
48600062
$4,27 Unit Price incl. VAT
49
CHECK VALVE 8X18X0,1
48600068
$7,75 Unit Price incl. VAT
49
Shim 8x20x0,10
48600215
$4,27 Unit Price incl. VAT
49
Shim 8x22x0,10
48600216
$4,27 Unit Price incl. VAT
49
Shim 8x11x0,20
48600346
$4,27 Unit Price incl. VAT
49
CHECK VALVE 8X11X0,4
48600352
$10,25 Unit Price incl. VAT
50
Shim 6x16x0,10
40540402
$4,27 Unit Price incl. VAT
50
Shim 6x18x0,10
40540403
$4,27 Unit Price incl. VAT
50
SHIM 6X14X0,15
40540405
$4,27 Unit Price incl. VAT
50
SHIM 6X16X0,15
40540406
$4,27 Unit Price incl. VAT
50
SHIM 6X16X0,25
40540414
$4,27 Unit Price incl. VAT
50
SHIM 6X18X0,25
40540415
$4,27 Unit Price incl. VAT
50
Shim 6x10x0,30
40540447
$4,27 Unit Price incl. VAT
50
SHIM 6X11X0,25
40541417
$4,27 Unit Price incl. VAT
50
Shim 6x24x0,10
48600063
$4,27 Unit Price incl. VAT
50
Shim 6x22x0,10
48600064
$4,27 Unit Price incl. VAT
50
Shim 6x20x0,10
48600065
$4,27 Unit Price incl. VAT
50
SHIM 6X20X0,15
48600069
$4,27 Unit Price incl. VAT
50
Shim 6x24x0,10 delta
48600116
$4,27 Unit Price incl. VAT
50
PRESSURE-RING 20X16,25X0,20
48600212
$2,13 Unit Price incl. VAT
51
Pistonring 26x28x5
48600060
$10,92 Unit Price incl. VAT
52
Piston 6,05x27,65x12 rebound
48600042
$25,19 Unit Price incl. VAT
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
$8,57 Unit Price incl. VAT
58
TUBE 29,3X1X385 ALU
48600140
$176,37 Unit Price incl. VAT
59
O-ring 46x2 NBR70 siliconized
48600048
$6,43 Unit Price incl. VAT
60
AXLE CLAMP L/S CPL. USD48 05
48600402S
48600402S1
$690,63 Unit Price incl. VAT
61
AXLE CLAMP R/S CPL. USD48 04
48600238S
$619,12 Unit Price incl. VAT
62
HH COLLAR SCREW M 8X25 WS=10
0015080253
$3,14 Unit Price incl. VAT
63
Nut valve M6x0,5 h6,5 WAF17
48600163
$6,43 Unit Price incl. VAT
64
Spring (8,5) l6,5 valve
48600202
$4,27 Unit Price incl. VAT
69
TAP COMPRESSION CPL. 03
48600152S1
$177,17 Unit Price incl. VAT
70
Shim 8x24x0,40
48600061
$4,27 Unit Price incl. VAT
71
Piston 6x27,8x9 compression
48600047
$20,48 Unit Price incl. VAT
72
O-ring 21x2 NBR70
46811499
$2,13 Unit Price incl. VAT
73
O-ring 24x2 NBR70
35480320
$2,13 Unit Price incl. VAT
74
TAP COMPRESSION
48600152
$86,34 Unit Price incl. VAT
75
Needle 10x11,6 compression
48600190
$28,49 Unit Price incl. VAT
76
O-ring 8x2 NBR70
48600049
$2,13 Unit Price incl. VAT
79
Round-wire snap ring 12x1 DIN7
48600051
$6,43 Unit Price incl. VAT
80
Adjustment screw slot compress
48600034
$15,73 Unit Price incl. VAT
81
Copper disc 29,5x33,5x1
48600004
$8,57 Unit Price incl. VAT
82
Rubber cap 35x10 NBR80
48600141
$8,57 Unit Price incl. VAT
83
FORK OIL SAE5 5L 2005
48600401S1
$474,08 Unit Price incl. VAT
87
VENT SCREW M4X8
48600076
$0,37 Unit Price incl. VAT
88
O-ring 3x1,5 NBR70
48600046
$3,54 Unit Price incl. VAT
89
SCREW CAP M51X1,5
48600075
$267,13 Unit Price incl. VAT
90
ADAPTER ADJUST. KNOB + BUSHING
48600073S
$329,51 Unit Price incl. VAT
91
O-ring 26x2 NBR90
48600077
$2,13 Unit Price incl. VAT
92
Round-wire snap ring 49x1,8
46810010
$6,43 Unit Price incl. VAT
93
Locking nut M25x1 LH h7 WAF32
48600072
$34,44 Unit Price incl. VAT
94
Carrier ring spring fork
48600071
$82,39 Unit Price incl. VAT
98
SILICONE GREASE F. DUST STRI
T511
$124,46 Unit Price incl. VAT
99
REPAIR-KIT EXC FRONT FORK06/07
R14013
$241,23 Unit Price incl. VAT

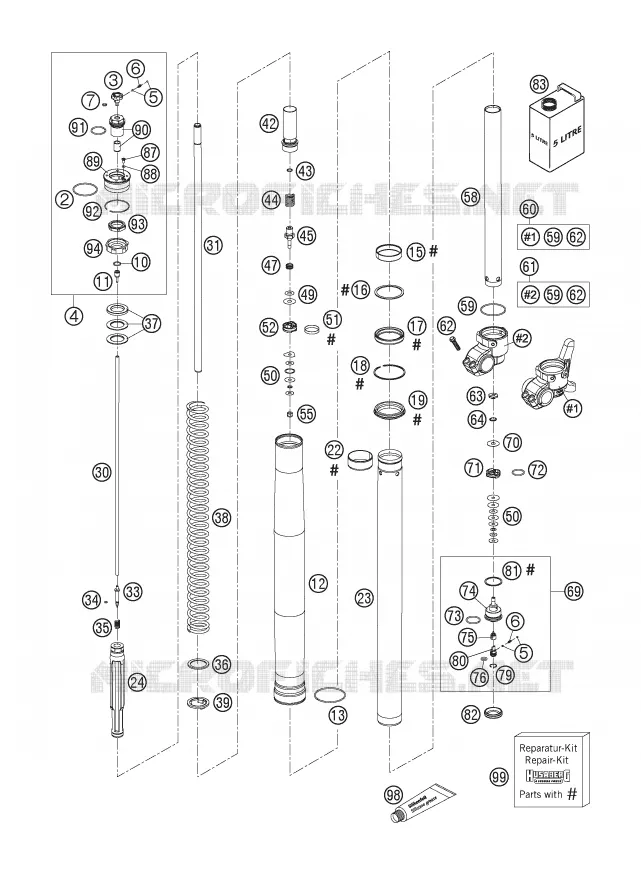

Find the detailed FRONT FORK (PARTS) HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
