CRANKSHAFT / PISTON for Husqvarna FX 350 from 2017

CRANKSHAFT / PISTON

1

CRANKSHAFT CPL.

79230018100

$2 143,42 Unit Price incl. VAT

2

CONROD REPAIR KIT

79230015144

$1 114,55 Unit Price incl. VAT

3

THRUST WASHER 988ST 32X0,1

0988324510

$3,54 Unit Price incl. VAT

3

THRUST WASHER 988ST 32X0,15

0988324515

$3,54 Unit Price incl. VAT

3

THRUST WASHER 988ST 32X0,30

0988324530

$3,54 Unit Price incl. VAT

4

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

$195,96 Unit Price incl. VAT

5

WOODRUFF KEY DIN6888-3X3,7

0888030037

$5,31 Unit Price incl. VAT

6

NUT PRIMARY WHEEL

77230029000

$68,61 Unit Price incl. VAT

7

SHAFT SEAL RING A30X47X6 VITON

0760304760

$31,41 Unit Price incl. VAT

8

SHAFT SEAL RING A 40X55X6 V.

0760405561

$32,58 Unit Price incl. VAT

9

SPACER BUSHING PRIMARY GEAR

77232022000

$46,56 Unit Price incl. VAT

10

PRIMARY GEAR 24T.

79232023024

$163,38 Unit Price incl. VAT

11

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$5,31 Unit Price incl. VAT

12

RETAINING PLATE F. CS BEARING

75030085000

$7,85 Unit Price incl. VAT

13

CIRCLIP PISTON PIN

79230274000

$41,16 Unit Price incl. VAT

14

COMPRESSIONRING 350

77230030000

$89,19 Unit Price incl. VAT

15

OIL SCRAPER RING

79230232000

$161,18 Unit Price incl. VAT

40

PISTON I CPL. 350

79230207100 I

$1 006,33 Unit Price incl. VAT

40

PISTON II CPL. 350

79230207100 II

$1 006,33 Unit Price incl. VAT

98

CRANKSHAFT REP. KIT

00050002316

$203,90 Unit Price incl. VAT

99

PISTON KIT 350 SX-F GR. I

00050000231

$945,20 Unit Price incl. VAT

99

PISTON KIT 350 SX-F GR. II

00050000232

$945,20 Unit Price incl. VAT

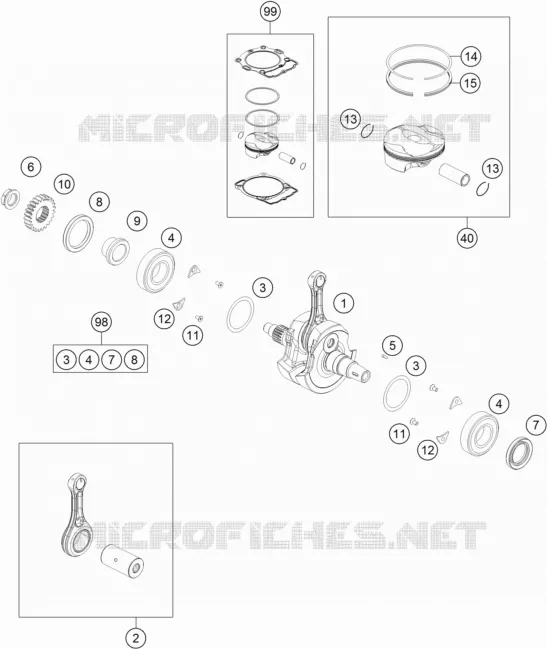

Find the detailed CRANKSHAFT / PISTON HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
