GEARBOX COUNTERSHAFT for Husqvarna FX 350 from 2017

GEARBOX COUNTERSHAFT

7

COUNTERSHAFT

77233110000

$212,39 Unit Price incl. VAT

8

RETAINING PLATE F. CS BEARING

75030085000

$7,85 Unit Price incl. VAT

9

hex lobe countersunc screw M5x

0019050106S

$5,31 Unit Price incl. VAT

11

SLIDING GEAR 6.G., Z=20

54833216000

$258,43 Unit Price incl. VAT

12

IDLER GEAR 2. GEAR, 25

54833312000

$193,82 Unit Price incl. VAT

13

IDLER GEAR 4.G., Z=23

54833214000

$152,20 Unit Price incl. VAT

14

SLIDING GEAR 5.G., Z=22

54833215000

$155,93 Unit Price incl. VAT

15

IDLER GEAR 3.G., Z= 25

54833213000

$165,39 Unit Price incl. VAT

16

CIRCLIP WS24

0417024000

$5,31 Unit Price incl. VAT

17

IDLER GEAR 1. GEAR, 31

54833311000

$152,02 Unit Price incl. VAT

20

SCREW 10.9+SPRING WASHER

59033034044

$16,38 Unit Price incl. VAT

21

NEEDLE BEARING K 20X26X12

0405202612

$22,83 Unit Price incl. VAT

22

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

$15,20 Unit Price incl. VAT

23

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$24,38 Unit Price incl. VAT

25

cylindrical roller bearing NJ2

49030023000

$155,37 Unit Price incl. VAT

26

BALL BEARING 6203 JR2 C3

0625062035

$30,24 Unit Price incl. VAT

29

SPROCKET 13T

79233029013

$55,88 Unit Price incl. VAT

29

SPROCKET 14T

79233029014

$55,88 Unit Price incl. VAT

30

STOP DISC 25X0,8X30X30X7H

54833043000

$10,92 Unit Price incl. VAT

31

STOP DISK 17,2X30X1,3

77233020000

$8,86 Unit Price incl. VAT

32

SPACER SLEEVE COUNTER

78133014000

$59,33 Unit Price incl. VAT

33

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$10,92 Unit Price incl. VAT

35

O-RING 25,12X1,78 NBR70

0770020220

$7,09 Unit Price incl. VAT

41

STOP DISC 20,2X30X1

54833080000

$7,09 Unit Price incl. VAT

43

STOP DISC 25X31X1,5

54833044000

$10,92 Unit Price incl. VAT

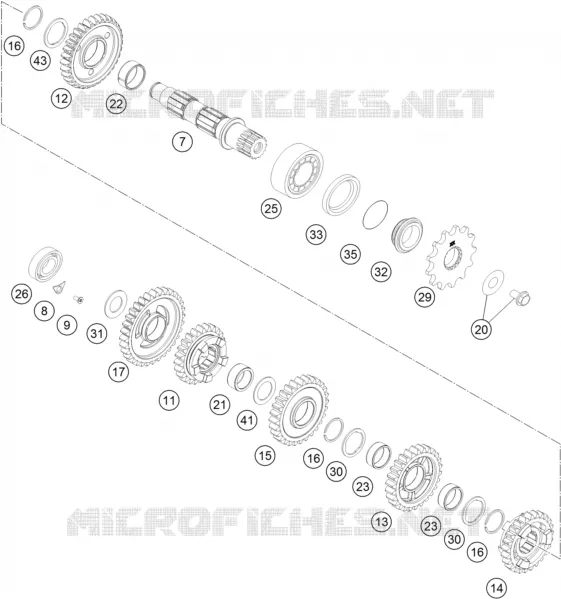

Find the detailed GEARBOX COUNTERSHAFT HUSQVARNA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original HUSQVARNA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
